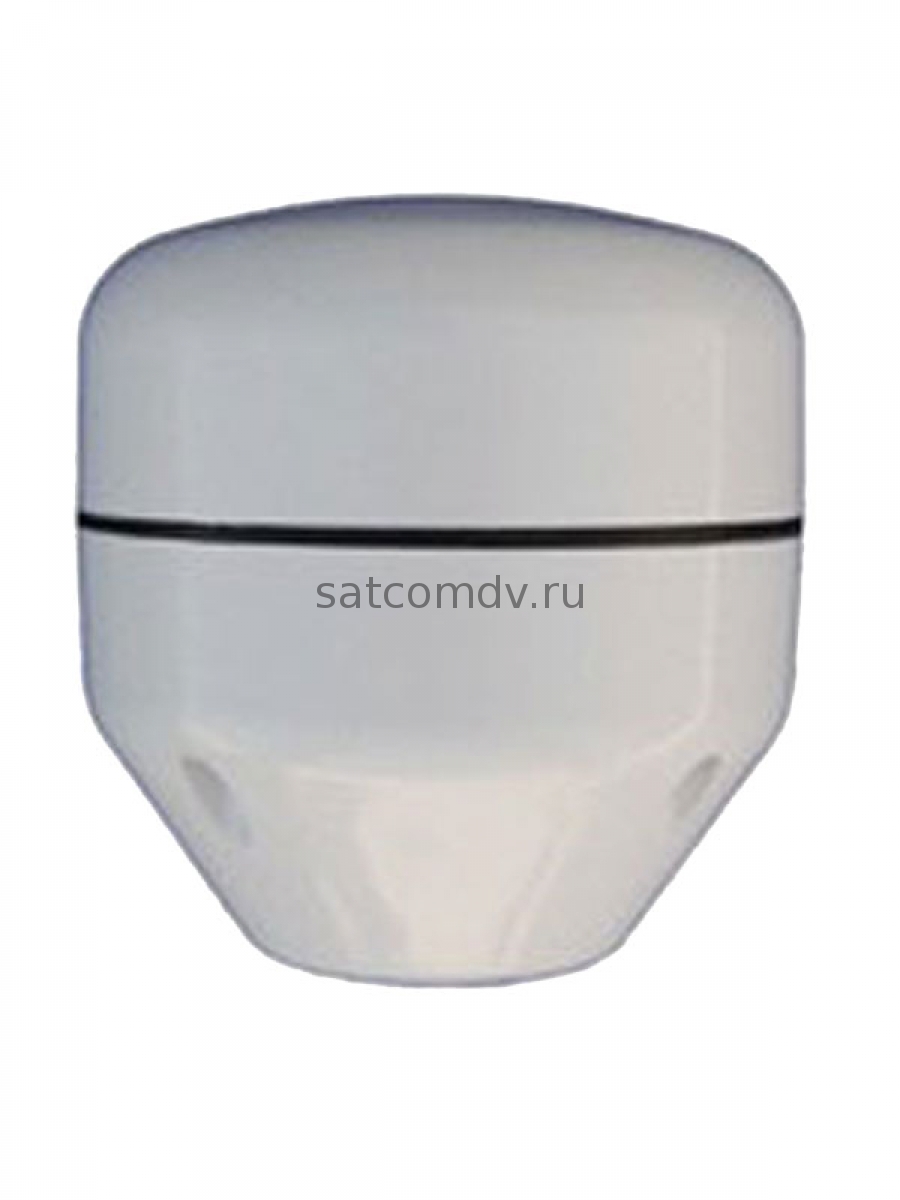

AeroAntenna AT1621-162 Single Channel Aviation Patch

This low-profile Iridium/GPS combination antenna provides continuous coverage from 1565 MHz to 1626.5 MHz for excellent Iridium operation as well as GPS L1 applications. Mechanical configuration is a spherical-radius molded radome that provides enhanced protection against rain, ice, and lightning strikes. It is qualified for high-speed military aircraft as well as ARINC applications.

Overview
This antenna (AT1621-162) is a combination Iridium and GPS active antenna and is designed to work primarily for marine applications and other harsh environments. It has a pipe thread mount that enables it to be securely mounted without the connectors being exposed to the environment.
The antenna is fitted with SMA female connectors for both the GPS and Iridium connections and will work with all major brands of Iridium / GPS based devices.

Specifications
Diameter: 3.5 in.
Height: .66 in.
Weight: 6 oz
Operating temperature range: -55°C to +85°C

.
